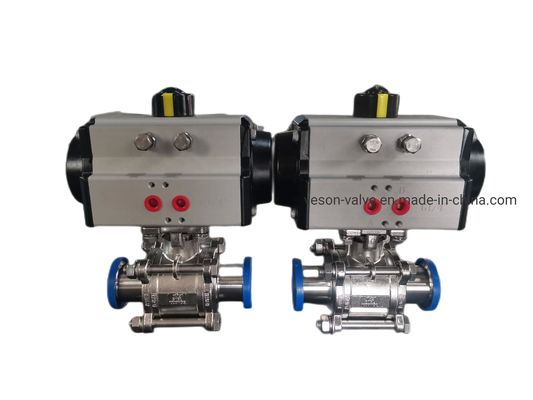

Pneumatic Ball Valve with Class 150-1500 Lb Pressure Rating and PN 10 ~ 250 for DN15-200 Applications
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Model No.: | VS-052 ~ VS-400 | Kanal Türü: | Doğruca |
|---|---|---|---|
| Yapı tipi: | Yüzen Top | İşletilen yol: | Kol, dişli, pnömatik, elektrik |
| Vücut malzemesi: | Karbon çelik, paslanmaz çelik, dubleks paslanmaz | Boyut aralığı: | NPS 1/2 "-8", DN15-200 |
| Basınç sınıfı: | Sınıf 150-1500 lb, PN 10-250 | Son bağlantı: | Flanş, BW, SW, NPT |
| Top malzemesi: | Serbest kesme çelik, paslanmaz çelik (1.4571/316ti) | Sızdırmazlık malzemesi: | Plastik, metal |
| Maksimum basınç: | PN500 | Sıcaklık aralığı: | -20 ° C ila +80 ° C (-4 ila +176 ° F) |
| Yüzey kaplaması: | Siyah oksit, çinko katmanı, çinko nikel | Üretim kapasitesi: | 50000pc/y |
| DN Aralığı: | DN04 ila DN25 | ||
| Vurgulamak: | Class 150-1500 Lb Pneumatic Ball Valve,PN 10 ~ 250 Pneumatic Ball Valve,DN15-200 Pneumatic Ball Valve |
||
Ürün Açıklaması

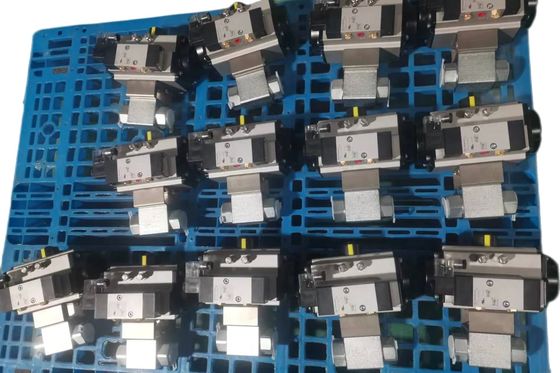

BKH - Block-Type Ball Valve with Pneumatic Actuator
High-performance 2-way ball valves designed for demanding industrial applications including construction machinery, agricultural equipment, mobile hydraulics, mining, and gas industries.
Key Features
- Available in sizes DN 4 to DN 25
- Multiple connection options including thread, compression fitting, and welding ends
- Robust construction with pressure ratings up to PN500
- Optional configurations with actuators, position switches, and locking devices
- Wide temperature range: -20°C to +80°C (-4 to +176°F)
Technical Specifications
| Component | Material |
|---|---|
| Body | S460N, S355 steel |
| Ball & Stem | Free cutting steel or stainless steel (1.4571/316Ti) |
| Sealing | Plastics or metal |
| Surface Treatment | Black oxide finishing, zinc-layer, or zinc nickel |
Connection Options
Compression fitting (light and heavy series), BSP thread, NPT thread, welding end and welding taper, UNC/UNF female thread, bulkhead connection, plug-in socket, plug nipple, and thread connection.
Applications
Ideal for hydraulic systems in construction, agriculture, mining, and gas industries. Materials and seals can be customized for specific application requirements.
