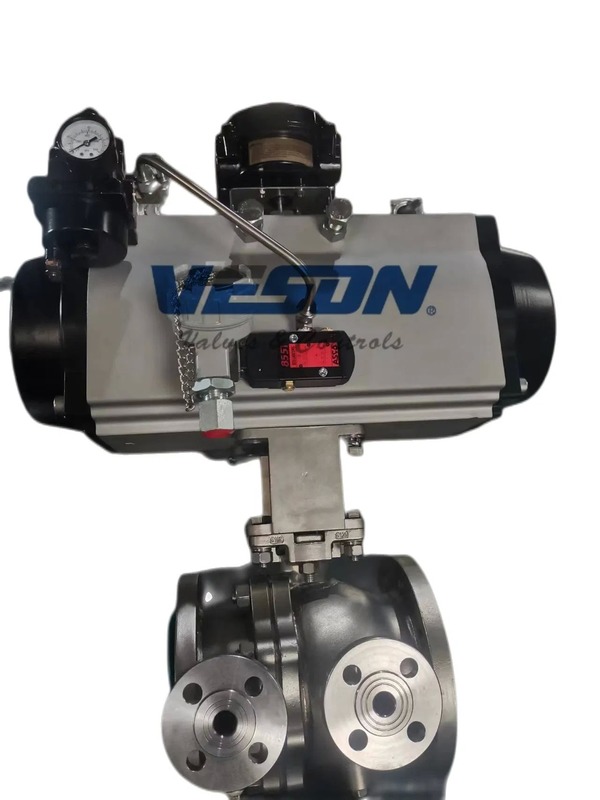

Pneumatic Jacketed Ball Valve with Pressure Rating 150#-600# Size 1/2"-24" DN15-DN600 for Steam Sulphur Applications
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Kanal Türü: | Doğruca Tür | Yapı: | Yüzer bilyalı valf |
|---|---|---|---|
| Valf tipi: | Yüzer bilyalı valf | Sınıf Puanı: | 150# --- 600# PN16-PN110 |
| Boyut aralığı: | 1/2 "-24" DN15-DN600 | Vücut malzemesi: | Karbon Çelik, Paslanmaz Çelik, Dubleks Paslanmaz Çelik, Bronz, Inconel |
| Son bağlantı: | Flanş Sonu (RF, RTJ) | Çalışma türü: | Manuel, Dişli, Pnömatik, Elektrikli |
| Basınç derecesi: | Class150 - Class 2500 veya PN 16 - PN 420 | Malzeme Seçenekleri: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Süper Dubleks, Inconel, C |
| Isı koruması: | Evet | soğuk yalıtım: | Evet |
| Akış çapı: | Tam çaplı | Sızıntı performansı: | Sızıntı yok |
| İnşaat tipi: | yekpare | ||
| Vurgulamak: | Pressure Rating 150#-600# Pneumatic Ball Valve,Size 1/2"-24" Jacketed Ball Valve,DN15-DN600 Steam Sulphur Ball Valve |
||
Ürün Açıklaması
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in petroleum, chemical, metallurgical, pharmaceutical, and food industries.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight than traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability compared to cast alternatives.
- Superior heat preservation and cold preservation capabilities
- Full-diameter design reduces media flow resistance
- Monolithic construction prevents leakage
- Compact and lightweight design
- Enhanced pressure resistance
Sizes: 1/2" - 24", DN 15 - DN 600
Pressure Rating: Class150 - Class 2500 or PN 16 - PN 420
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
