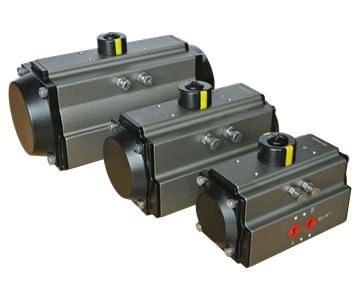

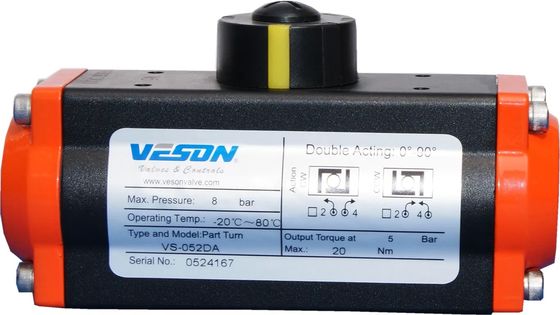

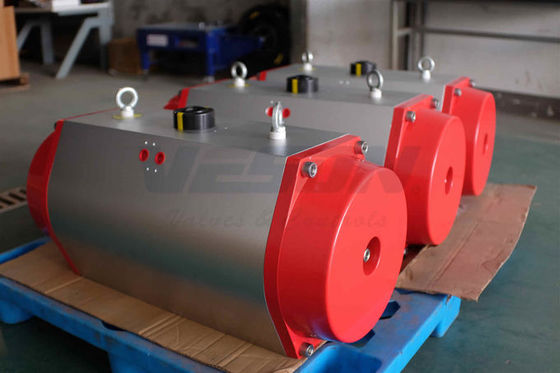

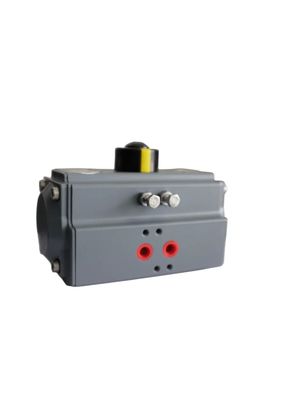

Epoxy Coated Pneumatic Actuator with ISO Pad 5211 and Travel Adjustment ±5º for Ball Valves with Limit Switch Boxes
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Model no.: | VS-052 ~ VS-400 | Güç: | Pnömatik |
|---|---|---|---|
| Basınç Yönü: | Çift Etkili Silindir | Sürüş: | Pnömatik aktüatör |
| pinyon malzemesi: | Sertleştirilmiş Alaşımlı Çelik | Pinyon Kaplama: | Nikel kaplama (15um'un üzerinde) |
| Aktüatör gövdesi: | Alüminyum ekstrüzyon | Gövde Kaplaması: | Sert eloksallı (30um'un üzerinde) |
| Uç Kapağı: | Desting Alüminyum | Uç Kapağı Kaplaması: | Epoksi kaplı (80um'un üzerinde) |
| Piston malzemesi: | Desting Alüminyum | Piston Kaplama: | Sert eloksallı (30um'un üzerinde) |
| Seyahat Ayarı: | ±5° | Yay Malzemesi: | Yüksek gerilimli çelik |
| Yay Kaplama: | Epoksi kaplamalı | ||
| Vurgulamak: | ISO Pad 5211 Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Limit Switch Boxes Pneumatic Air Actuator |
||
Ürün Açıklaması
Epoxy Coated Pneumatic Actuator with ISO Pad 5211
Premium Features and Specifications
Position Indicator
- Namur mounting position indicator included on all VESON pneumatic actuators
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Custom dimensions available with stainless steel and aluminum alloy options
Durable Actuator Body
- Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection
- Minimized piston friction
- Optional Epoxy Coated and PTFE Coated treatments available
Corrosion-Resistant End Caps
- Epoxy coated (over 80μm) die casting aluminum construction
- Maximum resistance against corrosive elements
- Optional PTFE Coated treatment available
Precision Piston System
- Hard anodized (over 30μm) die casting aluminum piston
- Precisely balanced with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
- Standard adjustment of ±5° in both open and closed positions
- Easy access via external adjustment bolts
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design allows for safe and rapid disassembly
Durable Bearings & Guides
- Highly durable compound material construction
- Provides high thrust stability with minimal friction
- Extended operational lifespan
