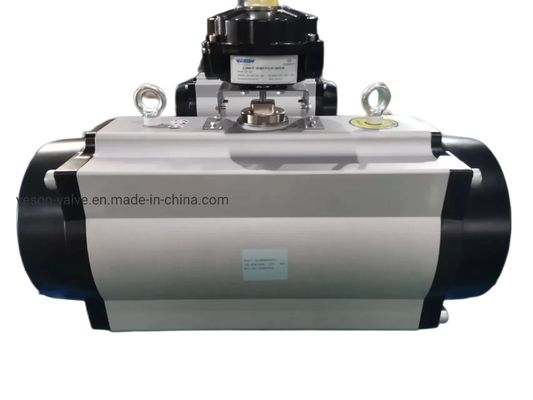

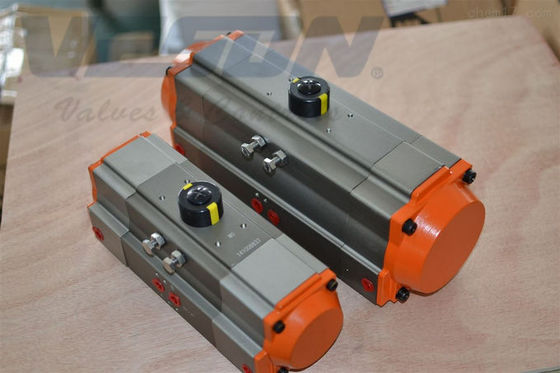

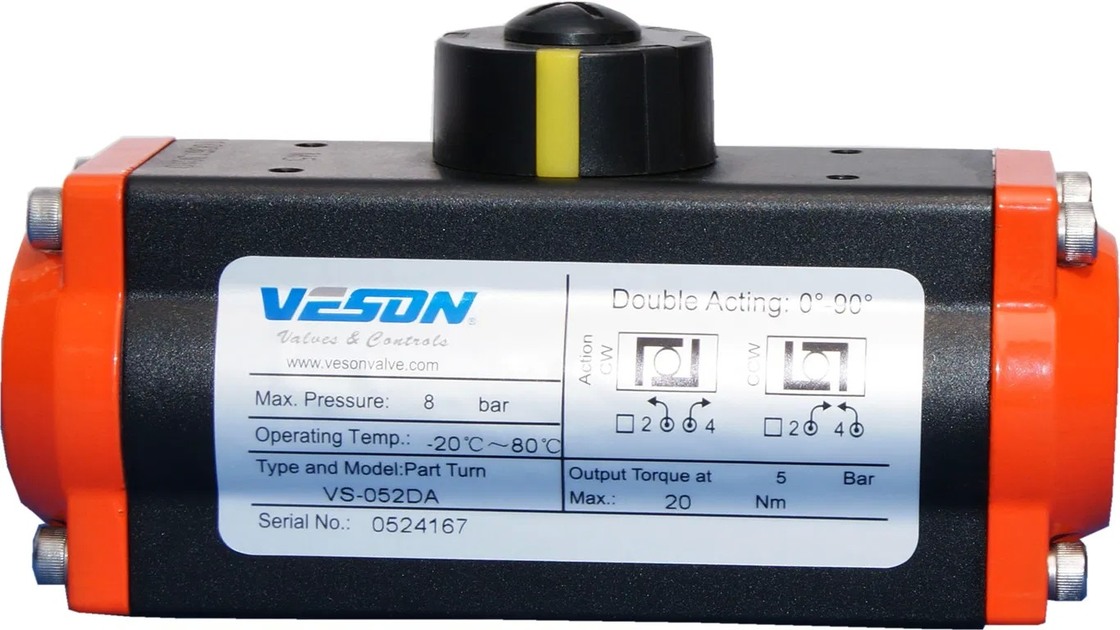

ISO5211 & DIN3337 Standard CE & SGS Certified VS-052~VS-400 Model Pneumatic Actuator Valve Actuator
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Model no.: | VS-052 ~ VS-400 | Düzeltilmiş Form: | Açıkkapalı |
|---|---|---|---|
| Çalışma türü: | Döner | Basınç: | Orta basınç |
| İş sıcaklığı: | Normal sıcaklık | Oyunculuk tipi: | Çift oyunculuk |
| Malzeme: | Alüminyum | Yapı: | Raf ve pinyon |
| pinyon malzemesi: | Sertleştirilmiş Alaşımlı Çelik | Pinyon Kaplama: | Nikel kaplama (15um'un üzerinde) |
| Aktüatör Gövde Kaplaması: | Sert eloksallı (30um'un üzerinde) | Uç Kapağı Kaplaması: | Epoksi kaplı (80um'un üzerinde) |
| Piston Kaplama: | Sert eloksallı (30um'un üzerinde) | Seyahat Ayarı: | ±5° |
| Yay Kaplama: | Epoksi kaplamalı | ||
| Vurgulamak: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
Ürün Açıklaması
Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
