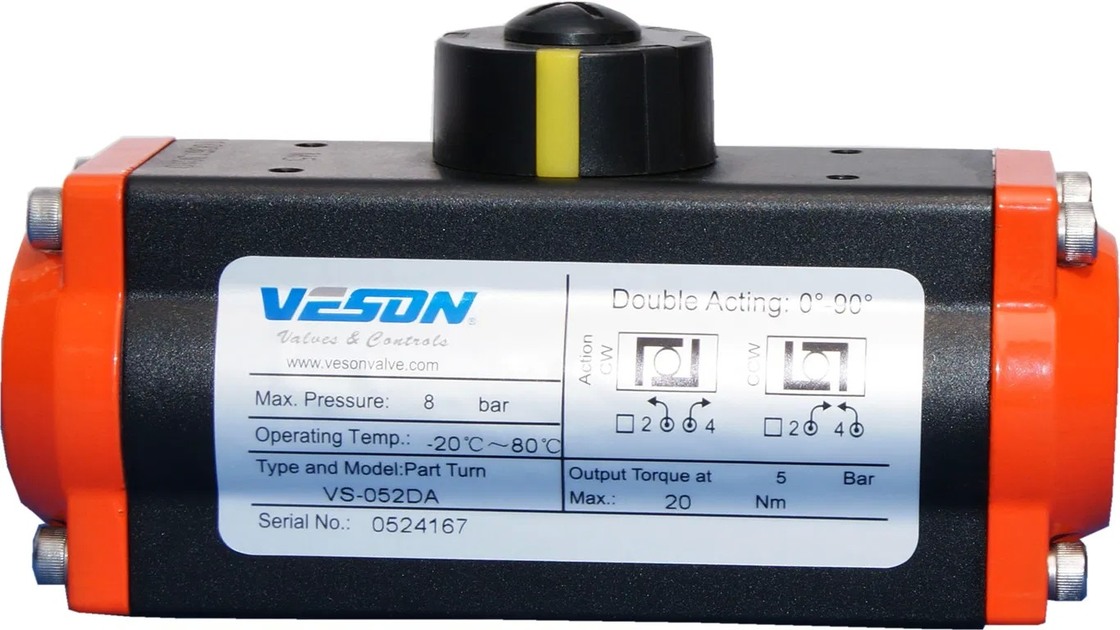

ISO5211 & DIN3337 Standard VS-052~VS-400 Model 50000PC/Y Aluminum Pneumatic Valve Actuator
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Model no.: | VS-052 ~ VS-400 | Güç: | Pnömatik |
|---|---|---|---|
| Basınç Yönü: | Çift Etkili Silindir | pinyon malzemesi: | Sertleştirilmiş Alaşımlı Çelik |
| Pinyon Kaplama: | Nikel kaplama (15um'un üzerinde) | Aktüatör Gövde Malzemesi: | Alüminyum ekstrüzyon |
| Aktüatör Kaplama: | Sert eloksallı (30um'un üzerinde) | Uç Kapağı Malzemesi: | Desting Alüminyum |
| Uç Kapağı Kaplaması: | Epoksi kaplı (80um'un üzerinde) | Piston malzemesi: | Desting Alüminyum |
| Piston Kaplama: | Sert eloksallı (30um'un üzerinde) | Seyahat Ayarı: | ±5° her iki konumda |
| Yaylı malzeme: | Yüksek gerilimli çelik | Yay Kaplama: | Epoksi kaplamalı |
| Rulman Malzemesi: | Son derece dayanıklı bileşik | ||
| Vurgulamak: | ISO5211 & DIN3337 Pneumatic Actuator,VS-052~VS-400 Valve Actuator,50000PC/Y Air Actuator |
||
Ürün Açıklaması
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
The hardened alloy steel pinion features precision grinding and Nickel plating (over 15μm) to reduce friction and provide maximum wear resistance. Fully compliant with ISO5211 & DIN3337 standards. Custom dimensions available with optional stainless steel and aluminum alloy materials.
Hard anodized aluminum extrusion (over 30μm) protects against wear and corrosion while minimizing piston friction. Optional Epoxy Coated and PTFE Coated finishes available.
Epoxy coated (over 80μm) die-cast aluminum end caps provide maximum resistance against potentially corrosive elements. PTFE Coated treatment available as an option.
Precisely balanced, hard anodized (over 30μm) die-cast aluminum piston with high-quality guides. The twin rack and pinion design ensures constant torque output across all actuators.
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs allow for safe and rapid disassembly.
Highly durable compound material provides high thrust stability with minimal friction and long operational life.
