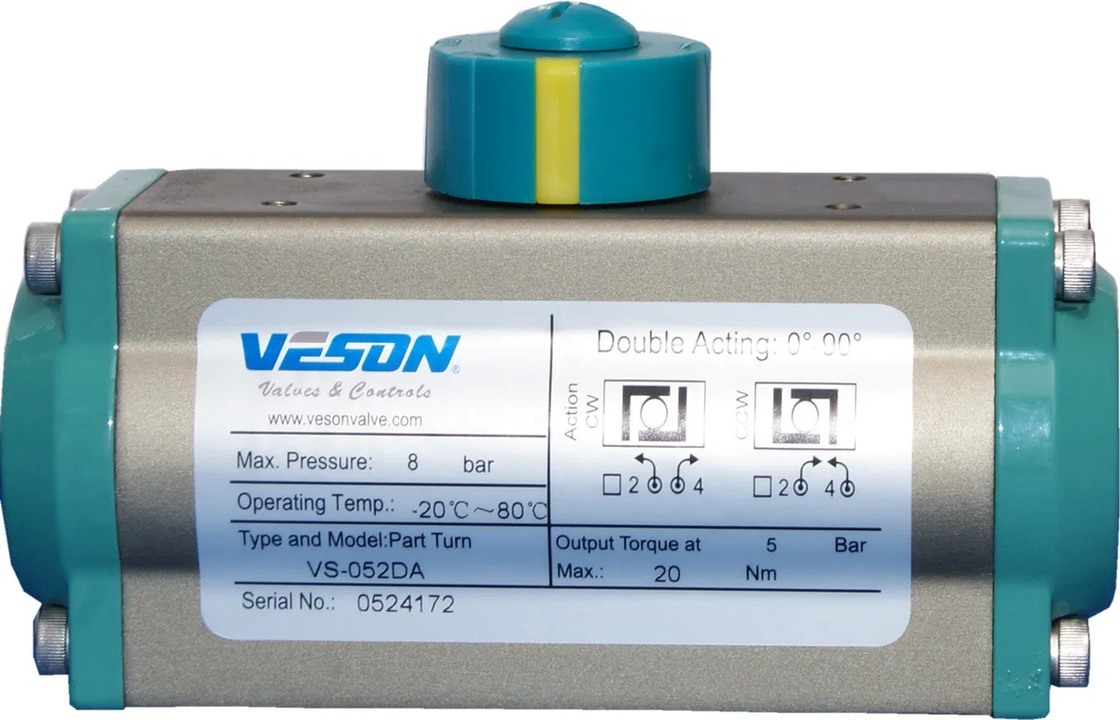

VESON Brand ISO5211 & DIN3337 Standard Pneumatic Actuator with Epoxy Coated End Cap and High Performance Springs
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Model no.: | VS-052 ~ VS-400 | Güç: | Pnömatik |
|---|---|---|---|
| Basınç Yönü: | Çift Etkili Silindir | pinyon malzemesi: | Sertleştirilmiş Alaşımlı Çelik |
| Pinyon Kaplama: | Nikel kaplama (15um'un üzerinde) | Aktüatör Gövde Malzemesi: | Alüminyum ekstrüzyon |
| Aktüatör Vücut Bakımı: | Sert eloksallı (30um'un üzerinde) | Uç Kapağı Malzemesi: | Desting Alüminyum |
| Uç Kapağı Tedavisi: | Epoksi kaplı (80um'un üzerinde) | Piston malzemesi: | Desting Alüminyum |
| Piston Tedavisi: | Sert eloksallı (30um'un üzerinde) | Seyahat Ayarı: | ±5° |
| Yaylı malzeme: | Yüksek gerilimli çelik | Yay Kaplama: | Epoksi kaplamalı |
| Rulman Malzemesi: | Son derece dayanıklı bileşik | ||
| Vurgulamak: | ISO5211 & DIN3337 Standard Pneumatic Actuator,Epoxy Coated End Cap Air Actuator,High Performance Springs Pneumatic Air Actuator |
||
Ürün Açıklaması
Air Torque Type Pneumatic Actuator
Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Pinion
- Hardened alloy steel pinion precision ground and nickel plated (over 15μm)
- Reduces friction and provides maximum wear resistance
- Full conformance with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Actuator Body
- Hard anodized aluminum extrusion (over 30μm)
- Protects against wear and corrosion while minimizing piston friction
- Optional treatments: Epoxy Coated and PTFE Coated
End Cap
- Epoxy coated die casting aluminum (over 80μm)
- Provides maximum resistance against potentially corrosive elements
- Optional treatments: PTFE Coated
Piston
- Precisely balanced and hard anodized die casting aluminum (over 30μm)
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Travel Adjustment
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel springs with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded springs can be safely and rapidly disassembled
Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction and long service life.
