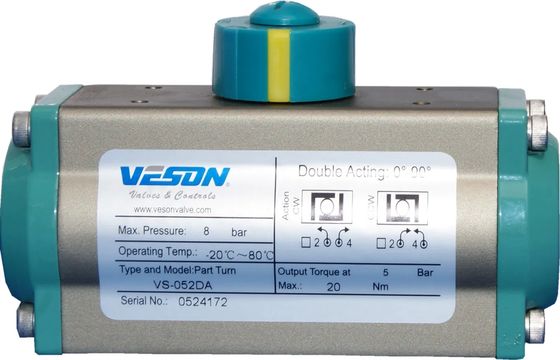

ISO5211 DIN3337 Standard Hard Anodized Aluminum Pneumatic Air Actuator with Double-acting Cylinder
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Model no.: | VS-052 ~ VS-400 | Güç: | Pnömatik |
|---|---|---|---|
| Basınç Yönü: | Çift Etkili Silindir | pinyon malzemesi: | Sertleştirilmiş Alaşımlı Çelik |
| Pinyon Kaplama: | Nikel kaplama (15um'un üzerinde) | Aktüatör Gövde Malzemesi: | Alüminyum ekstrüzyon |
| Aktüatör Vücut Bakımı: | Sert eloksallı (30um'un üzerinde) | Uç Kapağı Malzemesi: | Desting Alüminyum |
| Uç Kapağı Tedavisi: | Epoksi kaplı (80um'un üzerinde) | Piston malzemesi: | Desting Alüminyum |
| Piston Tedavisi: | Sert eloksallı (30um'un üzerinde) | Seyahat Ayarı: | ±5° |
| Yaylı malzeme: | Yüksek gerilimli çelik | Bahar Tedavisi: | Epoksi kaplamalı |
| Rulman Malzemesi: | Son derece dayanıklı bileşik | ||
| Vurgulamak: | ISO5211 Standard Pneumatic Actuator,DIN3337 Standard Air Actuator,Hard Anodized Pneumatic Air Actuator |
||
Ürün Açıklaması
Actreg Type Aluminum Pneumatic Actuator
Position Indicator
Features a position indicator with Namur mounting for easy accessory attachment, standard on all VESON pneumatic actuators.
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Durable Actuator Body
Constructed from hard anodized (over 30μm) aluminum extrusion for superior wear and corrosion resistance while minimizing piston friction.
Optional coatings: Epoxy Coated and PTFE Coated versions available.
Robust End Caps
Epoxy coated (over 80μm) die-cast aluminum end caps provide exceptional resistance against corrosive elements.
Optional treatments include PTFE Coating.
Precision Piston
- Precisely balanced die-cast aluminum construction
- Hard anodized treatment (over 30μm) for durability
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design for safe and rapid disassembly
Premium Bearings & Guides
Highly durable compound material provides exceptional thrust stability with minimal friction for extended operational life.
