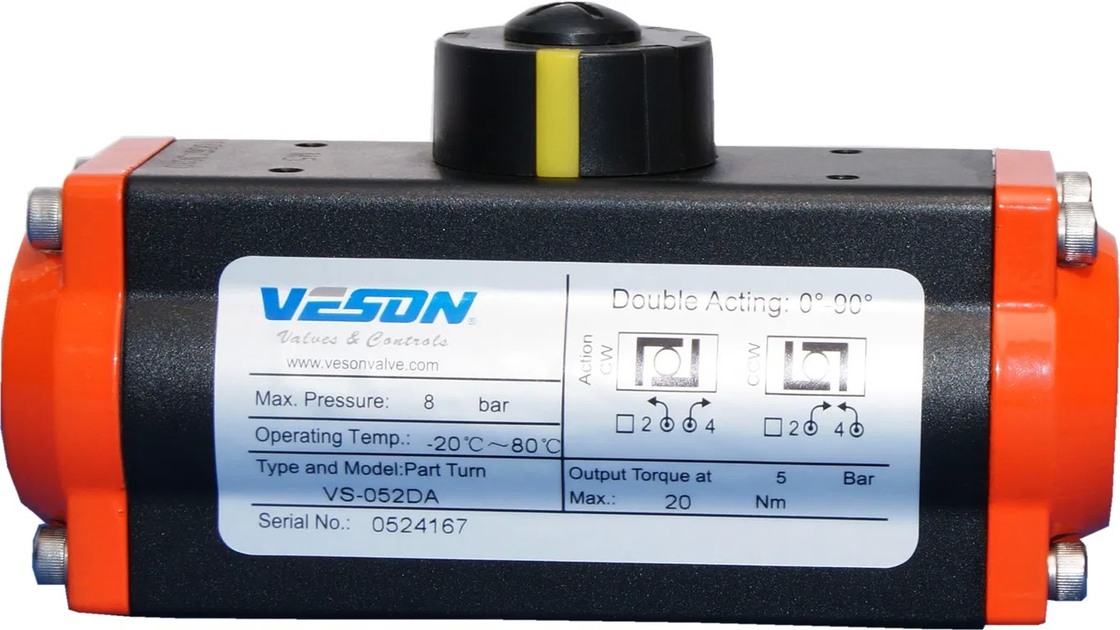

Pneumatic Air Actuator with ISO5211 & DIN3337 Standard CE & SGS Certified Hard Anodized Aluminum Valve Actuator
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Model no.: | VS-052 ~ VS-400 | Güç: | Pnömatik |
|---|---|---|---|
| Basınç Yönü: | Çift Etkili Silindir | pinyon malzemesi: | Sertleştirilmiş Alaşımlı Çelik |
| Pinyon Kaplama: | Nikel kaplama (15um'un üzerinde) | Aktüatör Gövde Malzemesi: | Alüminyum ekstrüzyon |
| Aktüatör Gövde Kaplaması: | Sert eloksallı (30um'un üzerinde) | Uç Kapağı Malzemesi: | Desting Alüminyum |
| Uç Kapağı Kaplaması: | Epoksi kaplı (80um'un üzerinde) | Piston malzemesi: | Desting Alüminyum |
| Piston Kaplama: | Sert eloksallı (30um'un üzerinde) | Seyahat Ayarı: | ±5° açık/kapalı konumlarda |
| Yaylı malzeme: | Yüksek gerilimli çelik | Yay Kaplama: | Epoksi kaplamalı |
| Rulman Malzemesi: | Son derece dayanıklı bileşik | ||
| Vurgulamak: | ISO5211 & DIN3337 Standard Pneumatic Air Actuator,CE & SGS Certified Valve Actuator,Hard Anodized Aluminum Air Torque Actuator |
||
Ürün Açıklaması
Air Torque Type Valve Actuator
Position Indicator
All VESON pneumatic actuators feature a position indicator with Namur mounting for accessory attachment.
Pinion
Precision-ground hardened alloy steel pinion with Nickel plating (over 15μm) ensures minimal friction and maximum wear resistance.
Standards: Fully compliant with ISO5211 & DIN3337
Options: Available in stainless steel and aluminum alloy with customizable dimensions
Actuator Body
Hard-anodized aluminum extrusion (over 30μm) provides superior wear and corrosion protection while minimizing piston friction.
Options: Epoxy Coated and PTFE Coated variants available
End Cap
Epoxy coated die-cast aluminum end caps (over 80μm) offer maximum resistance against corrosive elements.
Options: PTFE Coated treatment available
Piston
Precisely balanced, hard-anodized die-cast aluminum piston (over 30μm) with high-quality guides and twin rack-and-pinion design ensures constant torque output.
Travel Adjustment
Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
Epoxy-coated high tensile steel springs provide corrosion resistance and extended service life.
Pre-loaded springs allow for safe and rapid disassembly.
Bearings & Guides
Highly durable compound material ensures high thrust stability with minimal friction for long operational life.
