ISO5211 Standard VS-052~VS-400 Model Pneumatic Actuator with 6 Bar Air Supply for Industrial and Water Applications
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|
|
Detay Bilgi |
|||
| Model no.: | VS-052 ~ VS-400 | Sürüş modu: | Pnömatik |
|---|---|---|---|
| Nominal baskı: | PN1.0-32.0MPA | Kanal Türü: | Doğruca |
| Yapı: | Piston | Aktüatör türü: | Raf ve Pinyon |
| Sıcaklık aralığı: | Normal sıcaklık | Çıkış torku: | 9NM ila 4620Nm |
| Hava temini: | 6 bar | strok ayarı: | +/- 5 derece |
| Anodize tedavi: | 20um | Epoxy kaplama: | 100UM |
| Tuz püskürtme testi: | 500 saat | Kaplama Seçenekleri: | PTFE, Nikel, Epoksi, Polyester, Seramik |
| Üretim kapasitesi: | 50000pc / y | ||
| Vurgulamak: | ISO5211 Standard Pneumatic Actuator,VS-052~VS-400 Model Pneumatic Air Actuator,6 Bar Air Supply VS Series Actuator |
||
Ürün Açıklaması

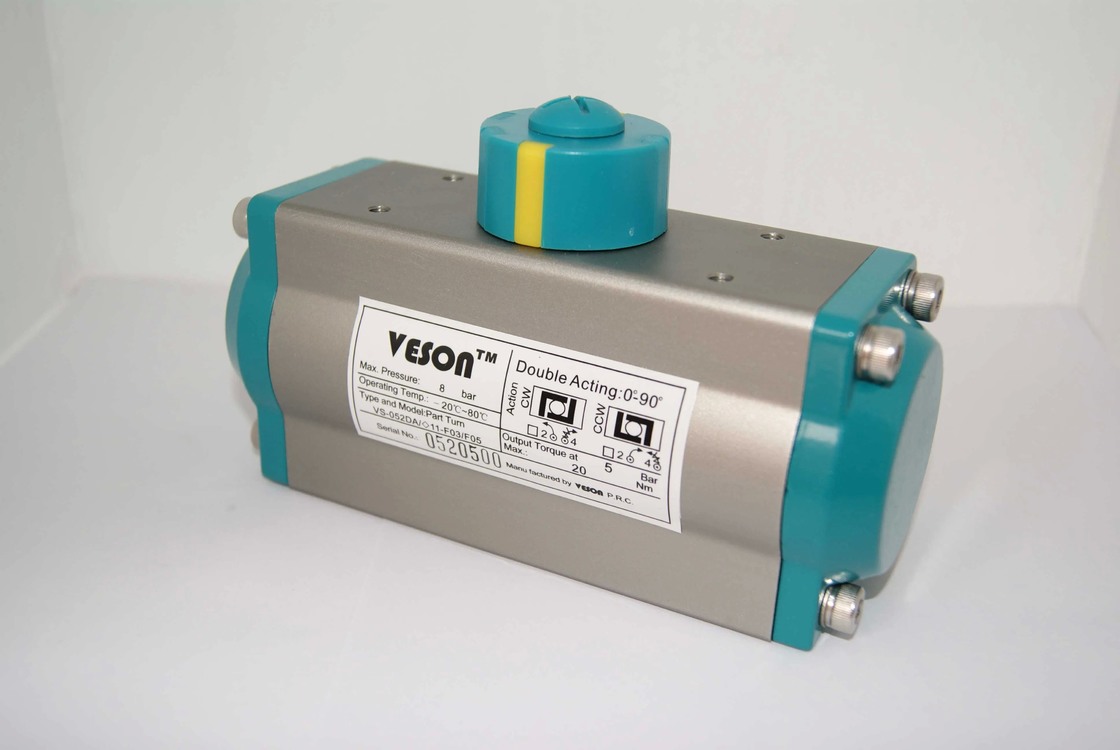

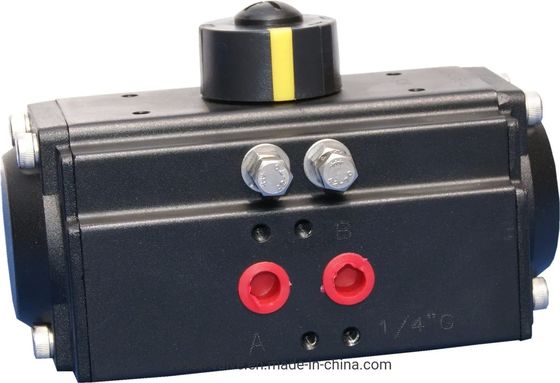

Pneumatic Actuator (VS-052) VS Series Pneumatic Actuators (Rack & Pinion)
Product Features
- 15 actuator models available with output torque ranging from 9NM to 4620Nm at 6 bar air supply
- Bottom drilling complies with ISO5211/DIN3337 standards for valve compatibility
- Interface for solenoid valve, shaft top end and top drilling for accessories comply with VDI/VDE3845 (Namur) standard
- ±5 degree stroke adjustment capability
- Actuator body & piston feature 20μm hard anodized treatment
- End caps with over 100μm epoxy coating meeting ASTM B117 qualification
- Passed 500+ hours salt spray test with no corrosion
- Available in multiple end cap colors (blue, black, grey, yellow, etc.) upon request
- Optional protective coatings: PTFE, Nickel, Epoxy, Polyester and Ceramic for corrosive/abrasive environments
Product Images
